Loader


Li-Rack Eco

A Battery With Difference!



Active Balancing

Active Balancing

Remote Monitoring

Remote Monitoring

Fast Charging

Fast Charging

Non-Flammable

Non-Flammable



Customized Lithium Battery

Customized Lithium Battery

German Engineering

German Engineering

Higher Returns

Higher Returns

Long Battery Life

10 Years Life*


Talk to Us

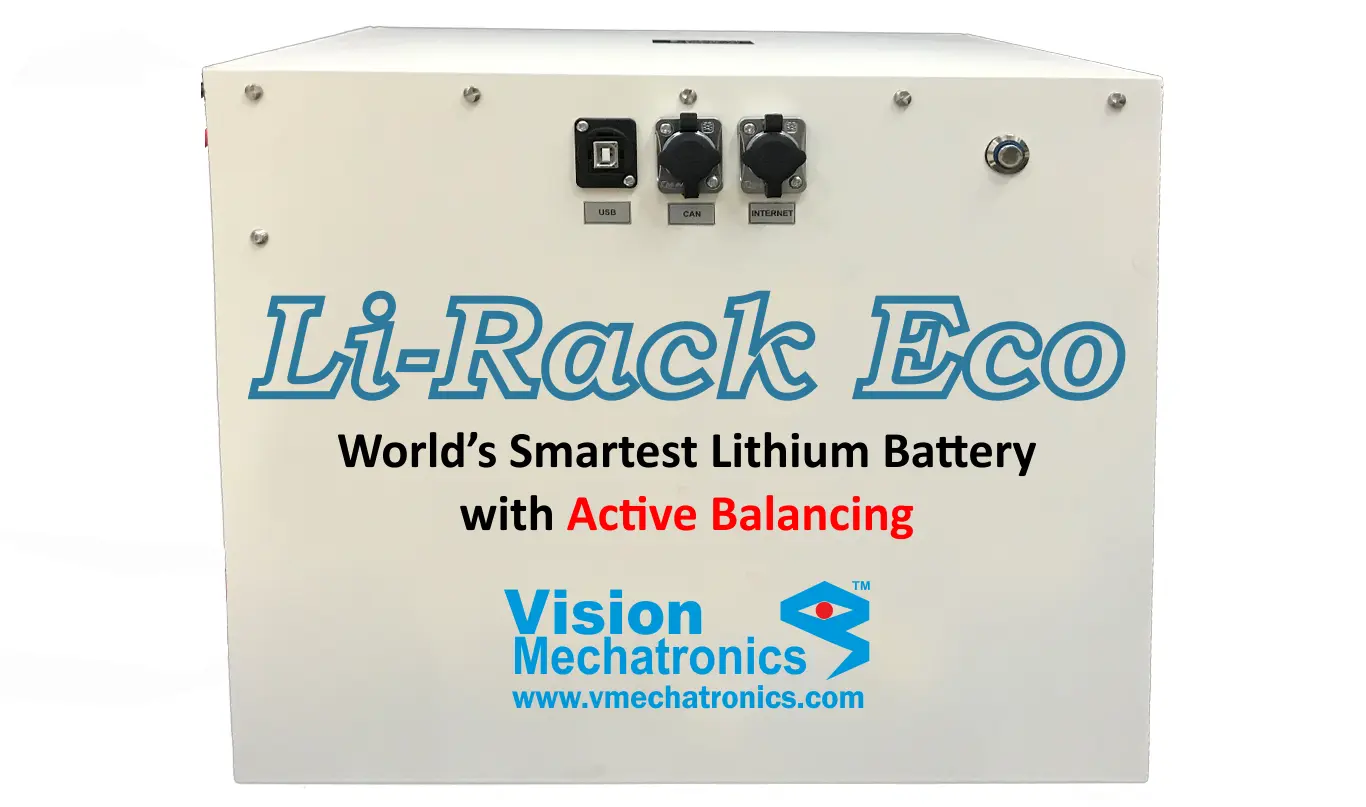

Lithium Battery India Li-Rack Eco

Highlights

Energy Efficient

Cost Effective

Zero Blackouts

Green Solutions

Maintainence Free

Energy Independence

Reduced Carbon Footprint

Customized Energy Storage System



Lithium Battery India Run By Clean Energy

Available Ranges

lithium battery 3.5kWh 3.5 kWh

lithium battery 8.9kWh 8.9 kWh

lithium battery 11.2kWh 11.2 kWh

lithium battery 16.8kWh 16.8 kWh

lithium battery 22.4kWh 22.4 kWh

lithium battery 33.6kWh 33.6 kWh

lithium battery 55.0kWh 55.0 kWh



header

A Quick
Comparision



Parameter Diesel Generator Lead Acid Battery Li Rack Eco
Efficiency Low about 25% Low about 60% As high as 95%
Energy Cost High High Low
Weight Bulky Bulky/ Heavy Weight Lower Weight
Sound Emission Noisy Silent Silent
Space Requirements Large Space Large Space Compact Design for Space Saving
Life Cycle X Lesser Life Cycle 10 Years life (4000 cycles*)
Pollution Yes Yes Green
Vested Interest Yes (Diesel Theft Possible) Yes (Lead Theft Possible) No vested interest
Repairs Frequent Repair Frequent Replacement Long Life
Remote Monitoring X X Remote Monitoring Possible
Operating Temperature - 25°C to 35°C -25°C to +50°C    [-13F to 122F]
BMS SUPPORT - - Active balancer,Relay Trigger,Single Cell Monitoring
Charging Time - Long Charging Time (Min 8Hrs) Shorter Charging Time (2~3 Hrs)
Operational Cost Yes Yes No
Plug & Play Ability - - Yes
Maintenance Yes Yes No
OTA Support - - Yes (Firmware Upgrades Over The Air)


header

Technical
Specifications



Capacity 3.5 kWh / 60Ah 5.6 kWh / 100 Ah 8.9 kWh / 160 Ah 11.2 kWh / 200 Ah
Voltage 48V
Max. Charge/Discharge Current 60A 100A 150A 200A
BMS Active Balancing
Interface CAN, CANopen For Standard Inverters
Remote Monitoring Yes
Extendable Yes
Dimensions(WxHxD) 470x380x230mm 600x370x240 mm 600x800x250 mm 800x1000x300 mm mm
Weight 47 kg (4x10kg cell modules + 7kg casing) 65 kg (4x14kg cell modules + 9kg casing) 135 kg (on-site assembly) 195 kg (on-site assembly)
Cell Type LiFePO4 High Performance Cells
Cycles 4000
Dod Max. 80%
Efficiency 95%
Operating Temperature -25°C to +50°C [-13F to 122F]

Capacity 16.8 kWh / 300 Ah 22.4 kWh / 400 Ah 33.6 kWh / 600 Ah 55 kWh / 1000 Ah
Voltage 48V
Max. Charge/Discharge Current 300 A 300 A 300 A 300 A
BMS Active Balancing
Interface CAN, CANopen For Standard Inverters
Remote Monitoring Yes
Extendable Yes
Dimensions(WxHxD) 600x1375x630 mm 600x1375x630 mm 600x2000x600 mm 600x2000x600 mm
Weight 267 kg 330 kg 496 kg 895 kg
Cell Type LiFeYPO4 High Performance Cells
Cycles 4000
Dod Max. 80%
Efficiency 95%
Operating Temperature -25°C to +50°C [-13F to 122F]
*Battery parameters and MRP are subject to change without prior intimation.


header

PREMIUM
PARTNERSHIP



Autartech
Vision Mechatronics Logo



header

Li-Rack Eco
FAQs



1.Is this really maintenance free?

Yes, India's Lithium Ion Battery "Li-Rack Eco" is absolutely maintenance free, you don’t have to add any sort of battery water or clean the terminals.

2. What does One Cycle mean?

A charge cycle is the process of charging a rechargeable battery and discharging it as required into a load.


3. Will this battery be safe to install at home?

Yes India's Lithium Ion Battery "Li-Rack Eco" is absolutely safe to install at home and is non-flammable as well as non-explosive. Some model are available with wall mounting features to save space.

4. Do I have to use this battery system daily?

No, India's Lithium Ion Battery "Li-Rack Eco" can be left unused to a period up to 6 months safely, the battery charge or condition will not deteriorate.


5. Does it have any protection?

Yes, India's Lithium Ion Battery "Li-Rack Eco" comes with inbuilt protections like over voltage, under voltage, over current, under currents, fault detection. The system automatically disconnects in case of any faults so that all your appliances, home, shops, industry is absolutely safe.

6. What is remote monitoring of the battery?

India's Lithium Ion Battery "Li-Rack Eco" is the first Internet Ready battery which comes with a remote monitoring feature which helps you know the health of the battery, state of charge and many other parameters. Also gives a warning on faults!


7. How can I charge the battery?

India's Lithium Ion Battery "Li-Rack Eco" can be charged by solar power, wind power, grid, and/or any dc source of the appropriate ratings.

8. Can I get custom sizes as per my requirements?

Yes, India's Lithium Ion Battery "Li-Rack Eco" are available in custom sizes on special requests, you can write to us on sales@vmechatronics.com .


9. How much time does it take to charge these batteries to full capacity?

India's Lithium Ion Battery "Li-Rack Eco" can be fully charged in 2-3 hours.

10. How much time can we discharge?

A full capacity of Li-Rack Eco can be discharged in one hour.


11. Is it programmable?

Yes, Li-Rack Eco is programmable to suit your requirements.

12. Does this emit any fumes or pollutants?

No, India's Lithium Ion Battery "Li-Rack Eco" does not emit any fumes or pollutants, it is completely eco-friendly.


13. Do I have to add battery water to this every month?

No, You will never have to add battery water to India's Lithium Ion Battery "Li-Rack Eco".

14. Are these batteries recyclable?

Yes, India's Lithium Ion Battery "Li-Rack Eco" is recyclable and has a second life too.


15. Can they sustain hot and humid climate of India?

Yes, Li-Rack Eco can sustain Indian weather conditions. It can operate in temperatures from -25°C to +50°C, hence its called India's Lithium Ion Battery.

16. How much space will these batteries require?

India's Lithium Ion Battery "Li-Rack Eco" is very compact and does not require a lot of space, some models are even wall mounting.


17. After how many years should I replace these batteries?

The life expectancy of India's Lithium Ion Battery "Li-Rack Eco" is 10 years* (4000 cycles @ 80% DoD), so install India's Lithium Ion Battery "Li-Rack Eco" and forget replacement headache for the next 10 years.
